Double head High frequency TPU inflatable welding machine

FOB Reference Price:Get Latest Price
$3,000.00 - $4,000.00 / Set | 1 Set/Sets TPU inflatable welding machine (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Jingyi
Model Number:
JY5000TQ
Voltage:
110V/220V/380V/Customize
Frequency:
27.12KHz
Welding Area:
350*700mm
Dimensions:
1800*1220*1710mm
Usage:
TPU inflatable welding machine
Product:
TPU inflatable welding machine
Application:
TPU inflatable welding machine
Warranty:
1 year warranty
Type:
TPU inflatable welding machine
For Suitable Materials:
TPU inflatable welding machine
For Installation and Operation:
Provided Freely
Operation:
pmeumatic and foot pedal
Head:
double head
Function:
For PVC welding
Certificate:
ISO9001:2004,SGS,CE
Weight:
450KG
After-sales Service Provided:
Engineers available to service machinery overseas
Power:
5KW
Supply Ability
Supply Ability:
300 Set/Sets per Month TPU inflatable welding machine
Packaging & Delivery
Packaging Details
Strong wooden case
Port
SHENZHEN
Lead Time :
Shipped in 2 days after payment
Product Description

Features

1, Anti-spark protection
When spark occur, the high sensitiveness spark protects electric system, cuts high frequency power immediately to protect mould and material

2, Jamming prevention device
High frequency welding machine equipped with frequency stabilizer and high frequency magnetic leakage suppressor, this device provide leakage of electron magnetic radiation to avoid jamming other electrical instruments such as television and radios etc

3, Safety device
When the current exceeds its limit, the overload relay functions automatically to protect oscillation tubes and rectifier. Frequency deviation caused by misoperation is also prevented.

4, High power welder
High frequency welding machine using a special designed mechanism, the maximum pressure of foot pedal can reach up to 400KGS so as to meet most operating conditions. The high quality components make these machines work very smoothly and precisely.

5, Easy tuning and special protection circuit
The selectable output power ensured a stable quality of the products for it could reduce the heating time when joining is being carried out.


6, Easily adjustable tuner
High frequency welding machine output power can be adjusted at the tuner according to electrode size and material thickness. In addition, other control devices and special electrical circuits have cut down required welding time considerably to raise the machine productivity.

7, Adjustment for the distance on the machine head
High frequency welding machine adjust the distance on the machine head if practical as the mould's size and height are different. Save working load while processing accuracy can reach to 98%.

Specification
Model
JY5000TQ
Machine Working Principle
HF Output
5KW
HF Welding relies on certain properties of the material being welded to cause the generation of heat in a rapidly alternating electric field, so called dielectric heating of the material to be welded.

This means that only certain materials can be welded using this technique. The dynamic electric field causes the molecules in polar thermoplastics to oscillate.

Depending on their geometry and dipole moment, these molecules may translate some of this oscillatory motion into thermal energy and cause heating of the material. A measure of this interaction is the loss factor, which is temperature and frequency dependent.
Oscillation Frequency
27.12MHZ
Power Supply
AC220/380/400/415/440V 3Phase
Input Power
8.5KVA
Oscillation Tube
TOSHIBA 7T85RB
Max Pressure
500KG
Max Gap of Electrodes
80MM
Working Space
60MM
Electrode Size
350*700MM
Operation Mode
Pmeumatic & Pedal
Net Weight
450KG
Gross Weight
500KG
Packing Size
1800*1220*1710MM
                       Main Spare Parts
Solenoid valve
Taiwan Air TAC
Timer
Taiwan CKC
Temperature Controller
Korea Rainbow
Contactor
Japan Fuji
Relay
Japan OMRON
Oscillation Tube
Toshiba
Anti-Spark Systerm
NL-5557

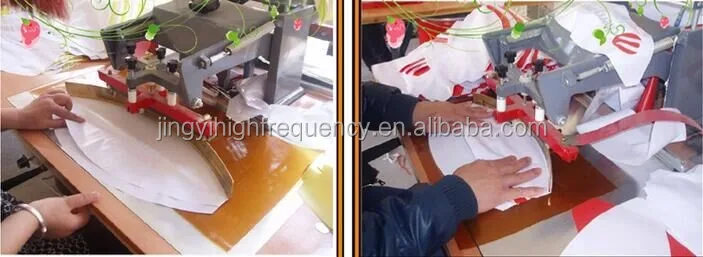

Working Video

Please click following links to see the machine working video:


https://youtu.be/na1_XMtPB8I


https://youtu.be/6RoNvXj76ic


https://youtu.be/H8C02h7Aeqg


https://youtu.be/GN3F4HpIwOE

Application

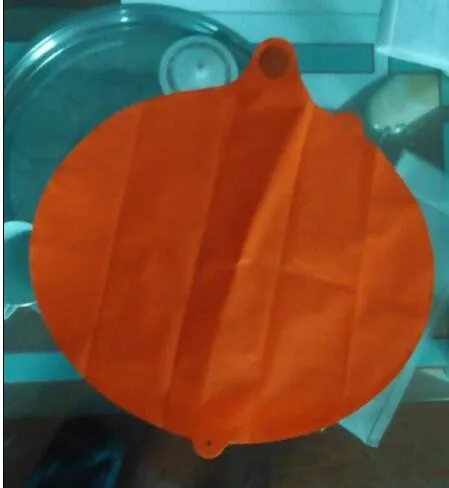

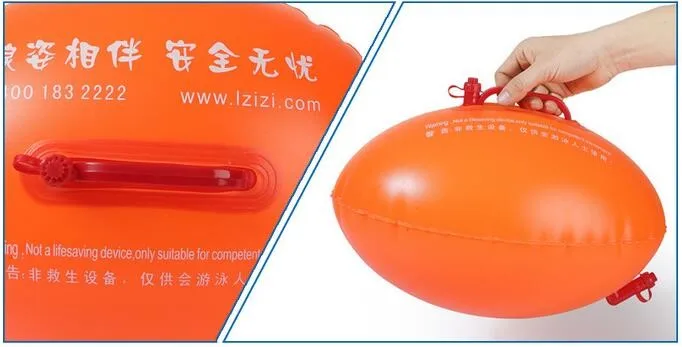

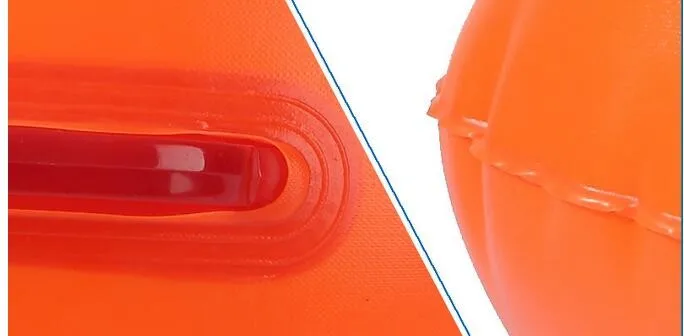

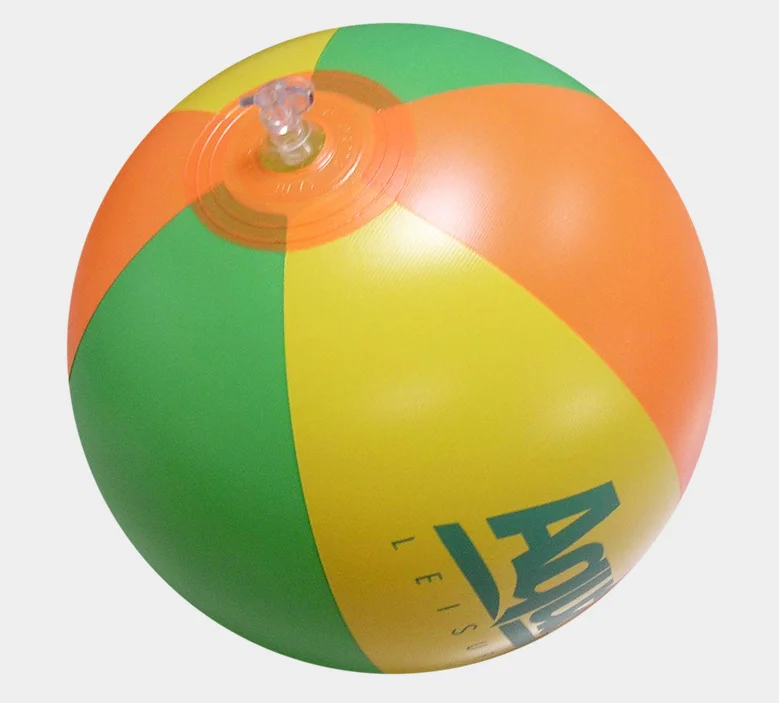

Final products done with HF welding

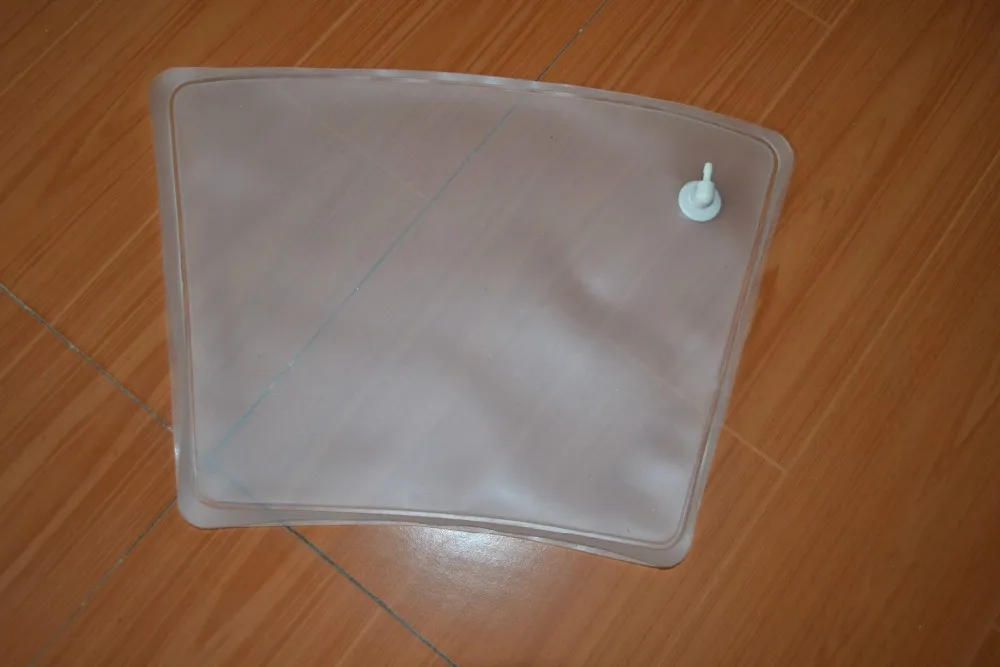

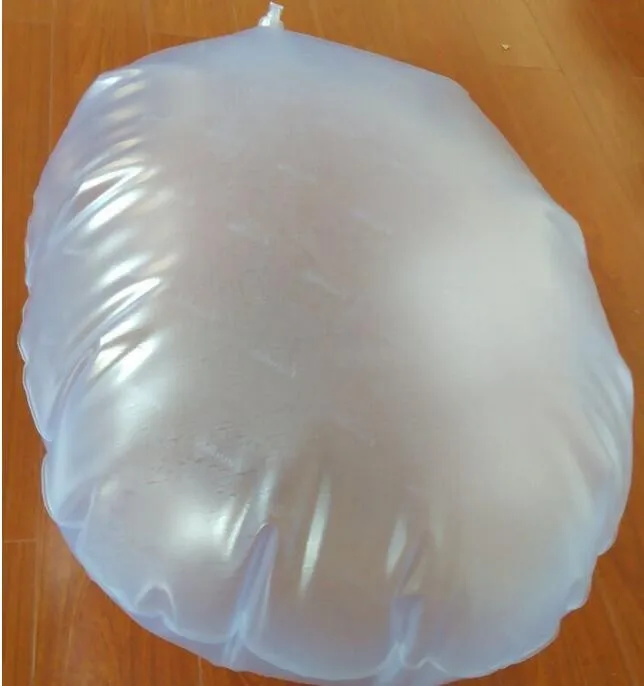

Common products manufactured with HF welding method are tarpaulins, tents, ceilings, advertising outdoor banners, waterbeds, inflatable boats, drip and blood bags, tensile structures, conveyor belts, rain clothing, etc.

What materials can be HF welded
The material most common in high frequency welding in PVC (something called simply vinyl) and PU (polyurethane). The material can be thick or thin, reinforced or coated. It cab also be plain, coloured or structure/patterned.

Polyvinylchlorde (PVC) and polyurethanes (PU) are the most common thermoplastics that are weldabele by HF also it is possbile to perform HF welding on other types of materia inculding naylon, PA, ABS, modified TOP, PETG, but particular attention should be pay on working parameters. HF welding is not suitable for PTFE, polycarbonte, polystyrne, polyethylene or polypropylene. Howeve, a special type of mixed fabrics have been produced recently, which have the capability to be HF welded.
