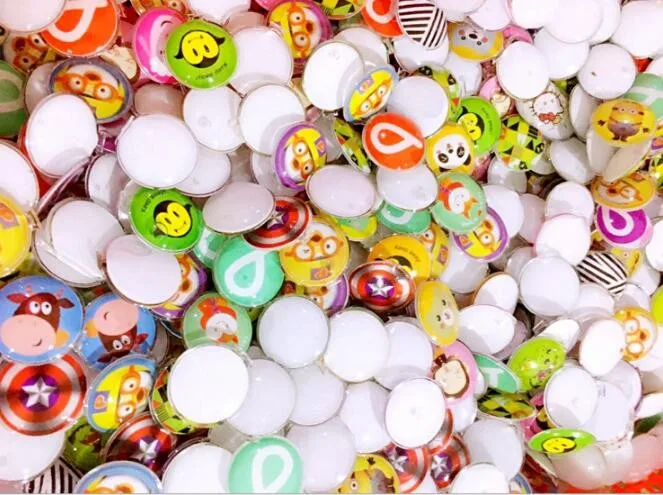

Mosquito repellent button welding machine pvc welding machine

FOB Reference Price:Get Latest Price
$2,950.00 - $4,500.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
JY5000TQ
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Jingyi
Condition:
New
Voltage:
110V/220V/380V/Customize
Frequency:
27.12KHz
Welding Area:
350*700mm
Dimensions:
1800*1220*1710mm
Usage:
Mosquito repellent button welding machine
Warranty:
1 Year, 1 year warranty
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support, Engineers available to service machinery overseas, No after-sales service
Applicable Industries:
Manufacturing Plant
Product:
Mosquito repellent button welding machine
Application:
Mosquito repellent button welding machine
Type:
Mosquito repellent button welding machine
For Suitable Materials:
PVC ,TPU, PU and the fabric coated PVC, PU, TPU
For Installation and Operation:
Provided Freely
Operation:
pmeumatic and foot pedal
Head:
double head
Function:
Mosquito repellent button welding machine
Power:
5KW
Weight:
460KG
Supply Ability
Supply Ability:
300 Set/Sets per Month Mosquito repellent button welding machine
Packaging & Delivery
Packaging Details
Strong Wooden Case
Port
SHENZHEN
Product Description

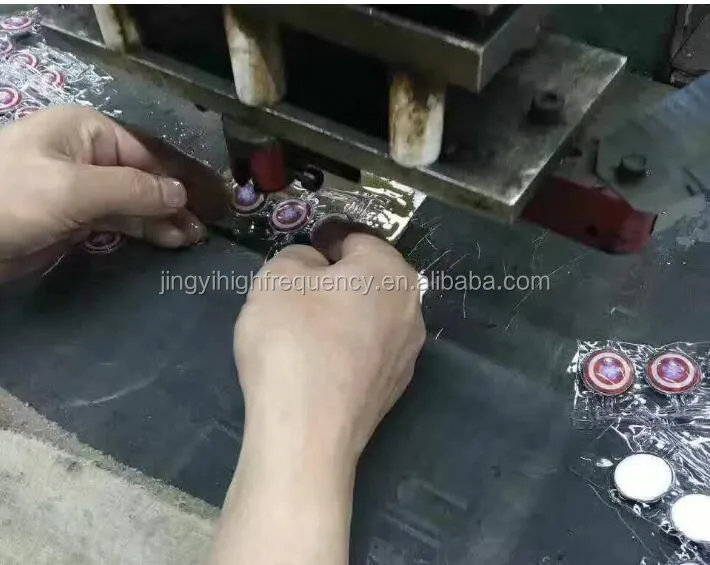

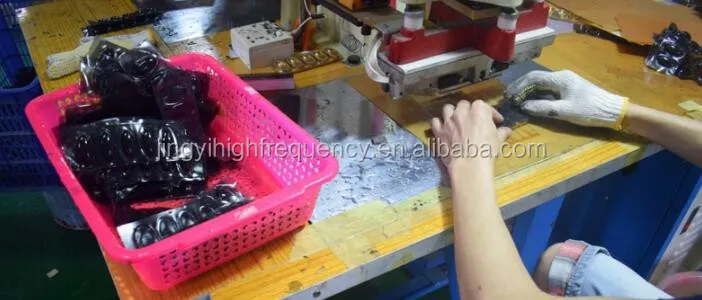

For machine working video, please clik the below picture or the following link:

https://youtu.be/mEqSAAnoj58

Model
JY5000TQ
Machine Working Principle
HF Output
5KW
HF Welding relies on certain properties of the material being welded to cause the generation of heat in a rapidly alternating electric field, so called dielectric heating of the material to be welded.

This means that only certain materials can be welded using this technique. The dynamic electric field causes the molecules in polar thermoplastics to oscillate.

Depending on their geometry and dipole moment, these molecules may translate some of this oscillatory motion into thermal energy and cause heating of the material. A measure of this interaction is the loss factor, which is temperature and frequency dependent.
Oscillation Frequency
27.12MHZ
Power Supply
AC220/380/400/415/440V 3Phase
Input Power
8.5KVA
Oscillation Tube
7T85RB
Max Pressure
500KG
Max Gap of Electrodes
80MM
Working Space
60MM

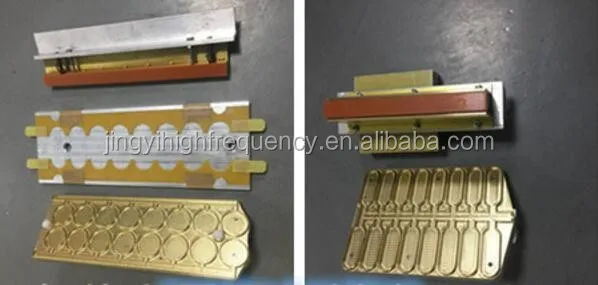

Electrode Size
350*700MM
Operation Mode
Pmeumatic & Pedal
Net Weight
450KG
Gross Weight
500KG
Packing Size
1800*1220*1710MM

Features

1. Safety device
When the current exceeds its limit, the overload relay functions automatically to protect oscillation tubes and rectifier. Frequency deviation caused by misoperation is also prevented.

2. Strong Foot Pedal
Machine using a special designed mechanism, the maximum pressure of foot pedal can reach up to 400KGS so as to meet most operating conditions. The high quality components make these machines work very smoothly and precisely.

3. Easily Adjustable Tuner
Machine output power can be adjusted at the tuner according to electrode size and material thickness. In addition, other control devices and special electrical circuits have cut down required welding time considerably to raise the machine productivity.

4. Jamming Prevention Device
High frequency welding machine equipped with frequency stabilizer and high frequency magnetic leakage suppressor, this device provide leakage of electron magnetic radiation to avoid jamming other electrical instruments such as television and radios etc.

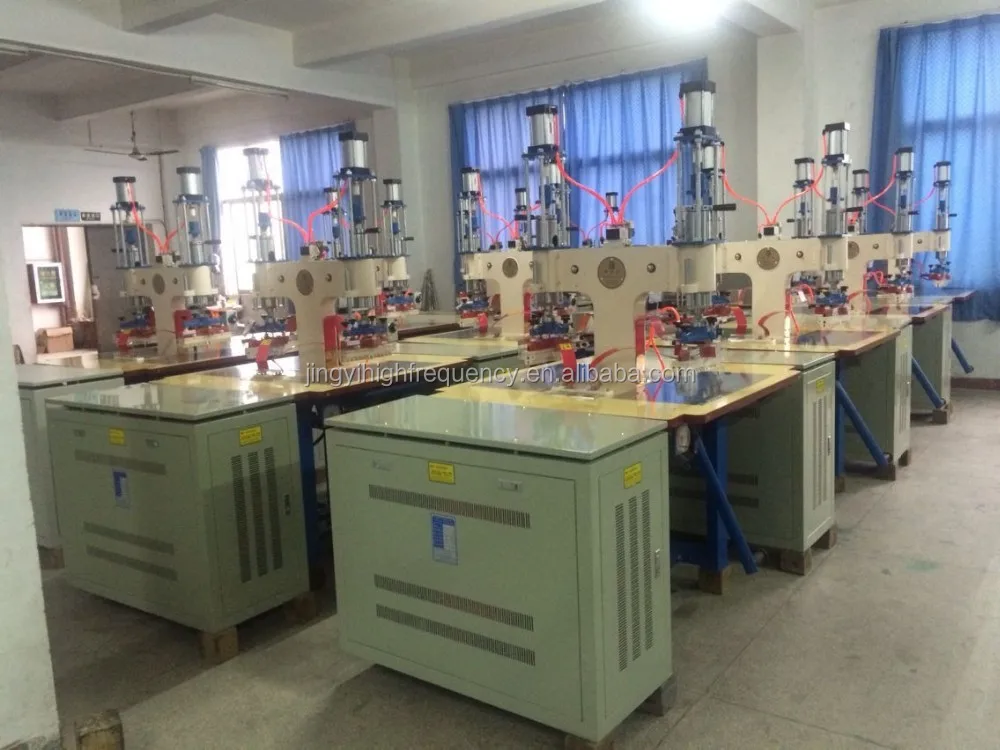

We are 100% Manufacturer of high frequency welding machine!!!

Application

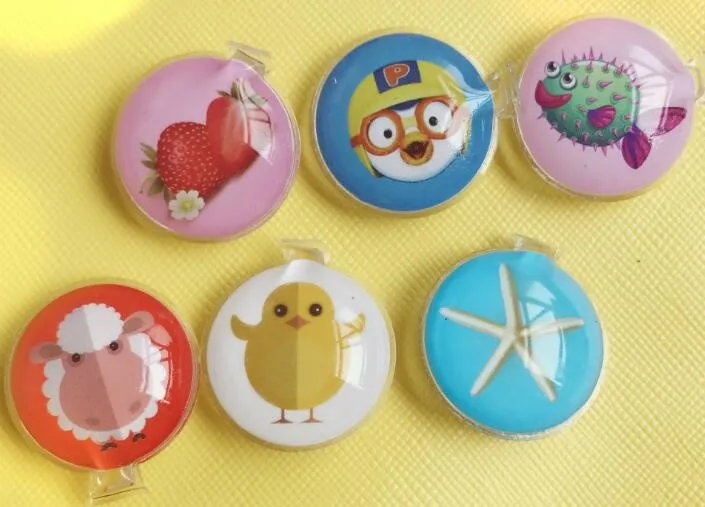

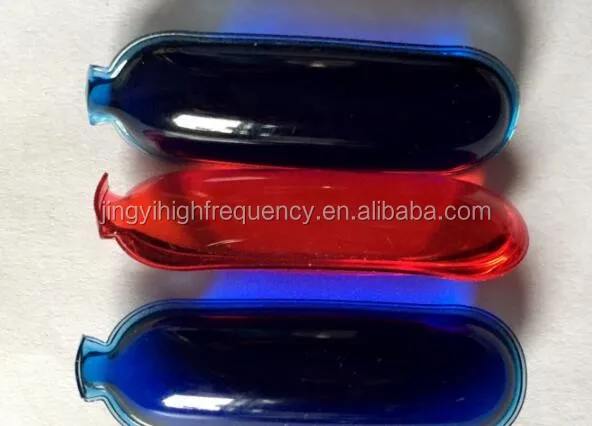

Final products done with HF welding
Common products manufactured with HF welding method are tarpaulins, tents, ceilings, advertising outdoor banners, waterbeds, inflatable boats, drip and blood bags, tensile structures, conveyor belts, rain clothing, etc.

What material can be HF welded
The material most common in high frequency welding in PVC (something called simply vinyl) and PU (polyurethane). The material can be thick or thin, reinforced or coated. It cab also be plain, coloured or structure/patterned.

Polyvinylchlorde (PVC) and polyurethanes (PU) are the most common thermoplastics that are weldabele by HF also it is possbile to perform HF welding on other types of materia inculding naylon, PA, ABS, modified TOP, PETG, but particular attention should be pay on working parameters. HF welding is not suitable for PTFE, polycarbonte, polystyrne, polyethylene or polypropylene. Howeve, a special type of mixed fabrics have been produced recently, which have the capability to be HF welded.
