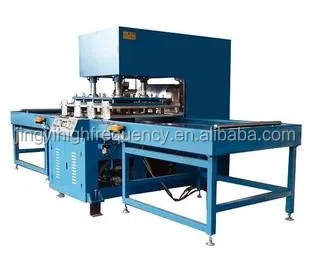

Jing Yi Brand, High Frequency PVC Swimming Laps Welding Machine

FOB Reference Price:Get Latest Price
$9,500.00 - $20,000.00 / Set | 1 Set/Sets Swimming Laps Welding Machine (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Jing Yi
Model Number:
JY-CTP
Voltage:
AC220/380/400/415/440V 3PHASE
Frequency:
13.56MHz
Welding Area:
Customized
Dimensions:
Customized
Usage:
inflatable buoy welding machine, Swimming Laps Welding Machine
Product name:
Swimming Laps Welding Machine
Style:
Push plate
Application:
Swimming Laps Welding Machine
Color:
Main Blue
Certificate:
ISO9001:2004,SGS,CE
Warranty:
1 Year
Brand nane:
JingYi
For Installation and Operation:
Provided Freely
Function:

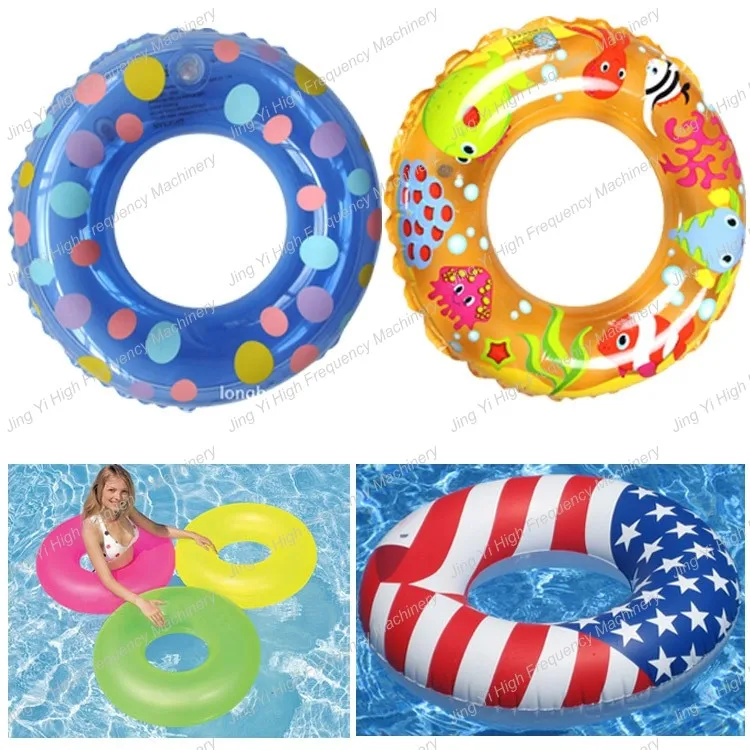

PVC inflatable child swim ring welding machine
Weight:
3000KG
After-sales Service Provided:
Engineers available to service machinery overseas
Power:
15KW, 25KW,35KW, 50KW
Supply Ability
Supply Ability:
50 Set/Sets per Month Swimming Laps Welding Machine
Packaging & Delivery
Packaging Details
Strong Plywooden Case,international standard
Port
SHENZHEN Port.Guangzhou Port
Lead Time :
Shipped in 10 days after payment
Product Description

Features and Functions:
1, Anti-spark protection
When spark occur, the high sensitiveness spark protects electric system, cuts high frequency power immediately to protect mould and material

2, Jamming prevention device
High frequency welding machine equipped with frequency stabilizer and high frequency magnetic leakage suppressor, this device provide leakage of electron magnetic radiation to avoid jamming other electrical instruments such as television and radios etc

3, Safety device
When the current exceeds its limit, the overload relay functions automatically to protect oscillation tubes and rectifier. Frequency deviation caused by misoperation is also prevented.

4, Easy tuning and special protection circuit
The selectable output power ensured a stable quality of the products for it could reduce the heating time when joining is being carried out.

5, Easily adjustable tuner
High frequency welding machine output power can be adjusted at the tuner according to electrode size and material thickness. In addition, other control devices and special electrical circuits have cut down required welding time considerably to raise the machine productivity.

6, Adjustment for the distance on the machine head
High frequency welding machine adjust the distance on the machine head if practical as the mould's size and height are different. Save working load while processing accuracy can reach to 98%.

Characteristics:
1. High sensitivity spark protection circuit, which can effectivelycut off the high current output, suppression of sparks.
2. Pneumatic devices, saving time, duplex, consistent and easy to operate.
3. Square-sype level adjustment, time-saving and easy transfer mode.
4. Main parts adopts imported components, Taiwan Airtac, Japan Omron, Toshiba and NL-5557.
5. Dual working station, turntable alternative working.
6. 27.12 Mhz standard frequency, no radiation.
7. Foot pedal control, fully imported pneumatic components, stable welding.
8. The machine meet with CE requirement.
9. Machine can be installing two molds, seperated operation.

Specification
Model
JY15000CTP
JY2500CTP
Machine Working Principle
HF Output
15KW
25KW
HF Welding relies on certain properties of the material being welded to cause the generation of heat in a rapidly alternating electric field, so called dielectric heating of the material to be welded.

This means that only certain materials can be welded using this technique. The dynamic electric field causes the molecules in polar thermoplastics to oscillate.

Depending on their geometry and dipole moment, these molecules may translate some of this oscillatory motion into thermal energy and cause heating of the material. A measure of this interaction is the loss factor, which is temperature and frequency dependent.
Oscillation Frequency
                          13.56MHz
Power Supply
AC220/380/400/415/440V 3PHASE
Inout Power
25KVA
35KVA
Oscillation Tube
8T85RB
8T25RA
Max Pressure
1500kg
1500kg
Electrode Size
700*800mm
800*900mm
Max Gap of Electrodes
                                 150mm
Net weight
3000KG
4000KG
Packing Size
                  Customized
                     Main Spare Parts
Solenoid valve
Taiwan Air TAC
Timer
Taiwan CKC
Temperature Controller
Korea Rainbow
Contactor
Japan Fuji
Relay
Japan OMRON
Oscillation Tube
TOSHIBA
Anti-Spark Systerm
NL-5557
Application

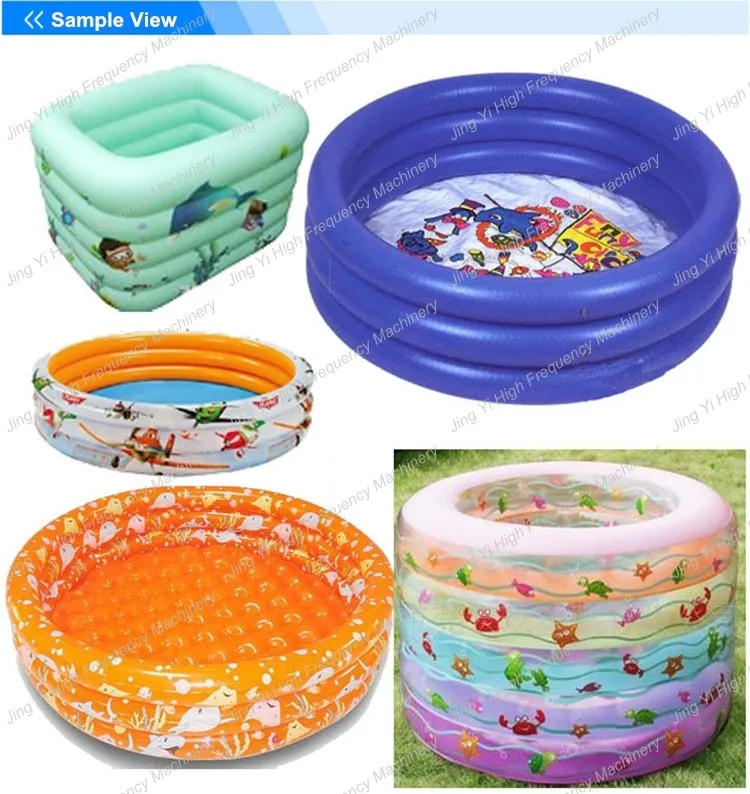

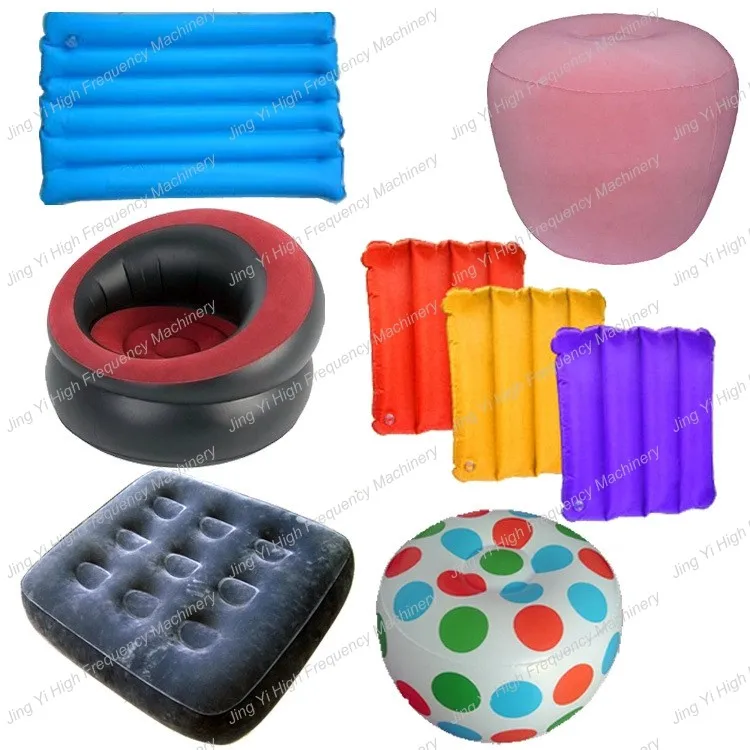

Applies to: PVC, EVA, or contain PVC10% any of these hard and soft rubber and leather or cloth special-purpose can be processed. PVC inflatable products, PVC inflatable cans, motorcycle seat covers, car mats, vehicle anti-sliding blocks, floor mat embroidery trademark, cars feet LOGO,PVC spinning pad, such as welded embossed.

Quality Control
Customer & Feedback

1. Your feedback is very important for us, and so if you are satificatory with our product, please give the positive feedback to us, and if not, please contact with us as soon as possible after receiving the order, we will try our best to satisfy you.

2. If you do not get the order and then the time is over, please contact with us, we will extend the time and we will aslo track the order number at the same time.

Packing & Delivery
Our Company

Jing Yi Machinery already has two overseas offices in Vietnam and Indonesia

FAQ and Contact

Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.

Pre-sale services:


1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.

Sale of services:


1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.

2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.

After-sales service:


1. Where to buy our products for 1 years warranty and life long maintenance.


2. 24-hours telephone service.


3. A large stock of components and parts, easily-worn parts.

Thanks for your interest and choice on us,we will serve you with personnel,patient and perfect products and solution for you,our honorable customer.
