High Frequency Plastic Welding Machine For Pvc Raincoat

FOB Reference Price:Get Latest Price
$2,950.00 - $4,500.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
JY5000TQ
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Jingyi
Condition:
New
Voltage:
110V/220V/380V/Customize
Frequency:
27.12KHz
Welding Area:
350*700mm
Dimensions:
1800*1220*1710mm
Usage:
PVC welding machine
Warranty:
1 Year, 1 year warranty
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support, Engineers available to service machinery overseas, No after-sales service
Applicable Industries:
Manufacturing Plant
Product:
high frequency plastic welding machine
Application:
PVC welding machine
Type:
high frequency PVC ceiling welding machine
For Suitable Materials:
PVC and the fabric coated PVC
For Installation and Operation:
Provided Freely
Operation:
pmeumatic and foot pedal
Head:
double head
Function:
For PVC welding
Power:
5KW
Weight:
450KG
Supply Ability
Supply Ability:
300 Set/Sets per Month PVC welding machine
Packaging & Delivery
Packaging Details
Strong wooden case
Port
SHENZHEN
Customer & Feedback

1. Your feedback is very important for us, and so if you are satificatory with our product, please give the positive feedback to us, and if not, please contact with us as soon as possible after receiving the order, we will try our best to satisfy you.

2. If you do not get the order and then the time is over, please contact with us, we will extend the time and we will aslo track the order number at the same time.

Product Description

Features

1, Anti-spark protection
When spark occur, the high sensitiveness spark protects electric system, cuts high frequency power immediately to protect mould and material
2, Jamming prevention device
High frequency welding machine equipped with frequency stabilizer and high frequency magnetic leakage suppressor, this device provide leakage of electron magnetic radiation to avoid jamming other electrical instruments such as television and radios etc
3, Safety device
When the current exceeds its limit, the overload relay functions automatically to protect oscillation tubes and rectifier. Frequency deviation caused by misoperation is also prevented.
4, High power welder
High frequency welding machine using a special designed mechanism, the maximum pressure of foot pedal can reach up to 400KGS so as to meet most operating conditions. The high quality components make these machines work very smoothly and precisely.
5, Easy tuning and special protection circuit
The selectable output power ensured a stable quality of the products for it could reduce the heating time when joining is being carried out.

6, Easily adjustable tuner
High frequency welding machine output power can be adjusted at the tuner according to electrode size and material thickness. In addition, other control devices and special electrical circuits have cut down required welding time considerably to raise the machine productivity.
7, Adjustment for the distance on the machine head
High frequency welding machine adjust the distance on the machine head if practical as the mould's size and height are different. Save working load while processing accuracy can reach to 98%.

We are 100% manufactuere of the hgih frequency welding machine!!

For more details, please click below picture.

Specification
Model
JY5000TQ
Machine Working Principle
HF Output
5KW
HF Welding relies on certain properties of the material being welded to cause the generation of heat in a rapidly alternating electric field, so called dielectric heating of the material to be welded.

This means that only certain materials can be welded using this technique. The dynamic electric field causes the molecules in polar thermoplastics to oscillate.

Depending on their geometry and dipole moment, these molecules may translate some of this oscillatory motion into thermal energy and cause heating of the material. A measure of this interaction is the loss factor, which is temperature and frequency dependent.
Oscillation Frequency
27.12MHZ
Power Supply
AC220/380/400/415/440V 3Phase
Input Power
8.5KVA
Oscillation Tube
TOSHIBA 7T85RB
Max Pressure
500KG
Max Gap of Electrodes
80MM
Working Space
60MM
Electrode Size
350*700MM
Operation Mode
Pmeumatic & Pedal
Net Weight
450KG
Gross Weight
500KG
Packing Size
1800*1220*1710MM
                       Main Spare Parts
Solenoid valve
Taiwan Air TAC
Timer
Taiwan CKC
Temperature Controller
Korea Rainbow
Contactor
Japan Fuji
Relay
Japan OMRON
Oscillation Tube
Toshiba
Anti-Spark Systerm
NL-5557
Application

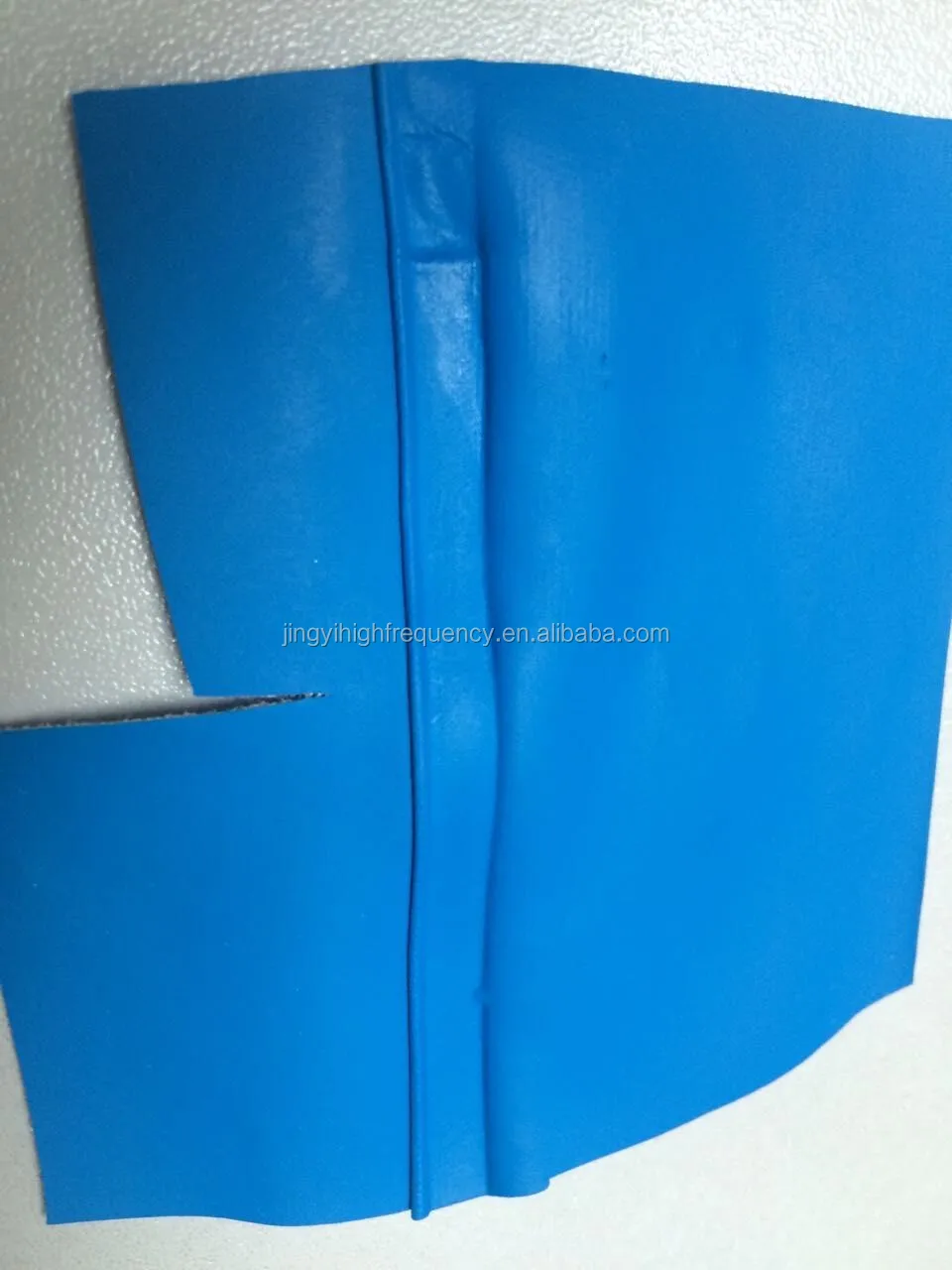

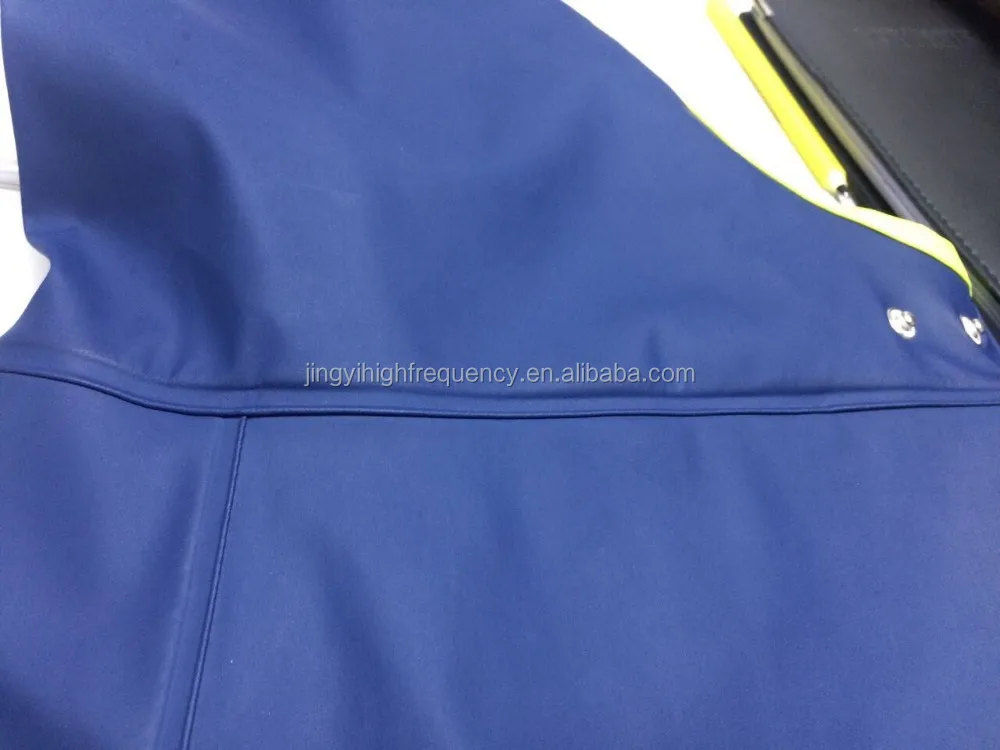

Final products done with HF welding

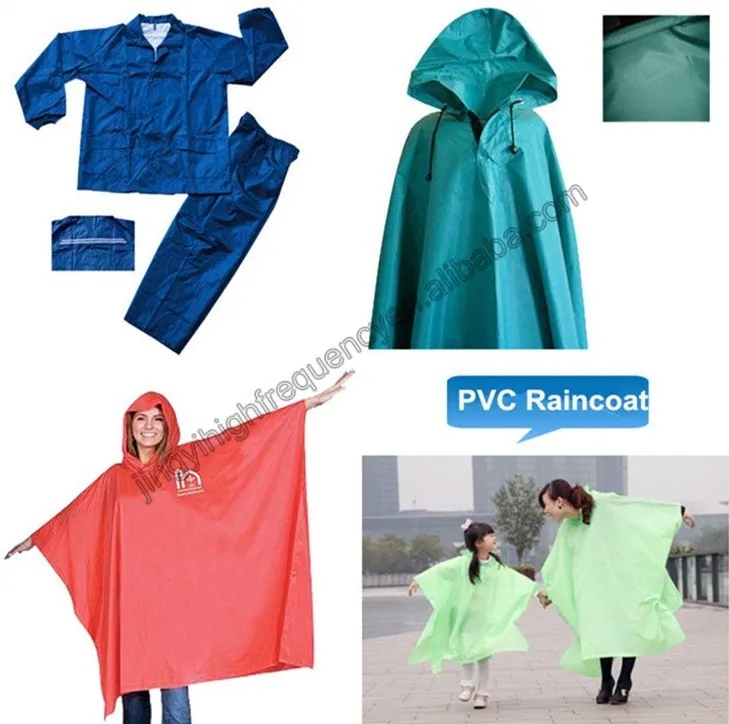

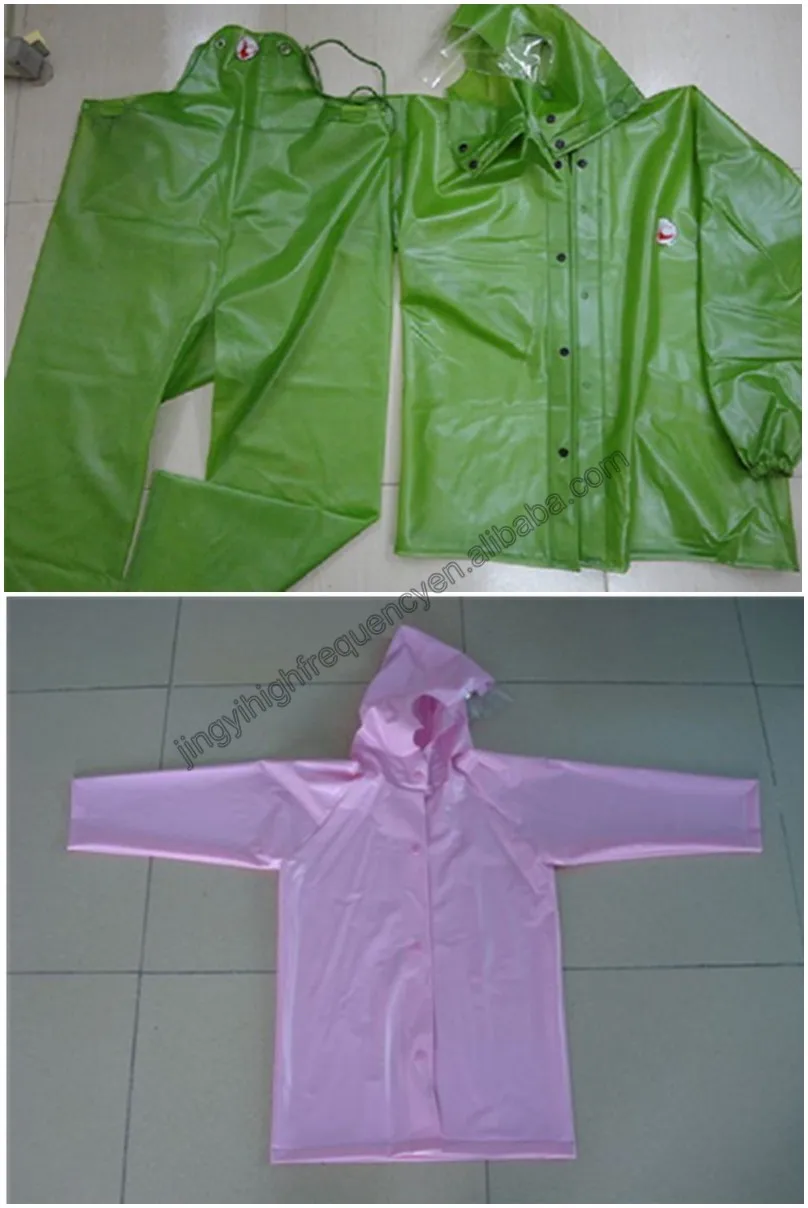

Common products manufactured with HF welding method are tarpaulins, tents, ceilings, advertising outdoor banners, waterbeds, inflatable boats, drip and blood bags, tensile structures, conveyor belts, rain clothing, etc.

What materials can be HF welded
The material most common in high frequency welding in PVC (something called simply vinyl) and PU (polyurethane). The material can be thick or thin, reinforced or coated. It cab also be plain, coloured or structure/patterned.

Polyvinylchlorde (PVC) and polyurethanes (PU) are the most common thermoplastics that are weldabele by HF also it is possbile to perform HF welding on other types of materia inculding naylon, PA, ABS, modified TOP, PETG, but particular attention should be pay on working parameters. HF welding is not suitable for PTFE, polycarbonte, polystyrne, polyethylene or polypropylene. Howeve, a special type of mixed fabrics have been produced recently, which have the capability to be HF welded.

Quality Control
Packing & Delivery

Packing:

We use ply-wood case for packing machines, it will meet export standard like safty, protection requirment and durable performace in long time shipping by sea or air, our package no need fumigation

Delivery:

For machine is big and heavy parcel, and different country with different delivery cost. And the best delivery we suggest is by sea, so the delivery cost will be depended on your destination port. The price show on the website just the machine EXW price, please understand.

FAQ and Contact

Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.

Pre-sale services:


1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.

Sale of services:


1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.

2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.

After-sales service:


1. Where to buy our products for 1 years warranty and life long maintenance.


2. 24-hours telephone service.


3. A large stock of components and parts, easily-worn parts.

Thanks for your interest and choice on us,we will serve you with personnel,patient and perfect products and solution for you,our honorable customer.

Why Choose us

1. A 25 Years Experienced Manufacturer.
One of the leading manufacturer of high frequency welding supplier from China, Since 1991,focusing on high frequency welding machine for about 25 years and 6 years Alibaba golden supplier.

2. A Strong and Powerful Company.
Self-built factory building with 10,600 square meters.

3. Excellent production facilities and equipment.

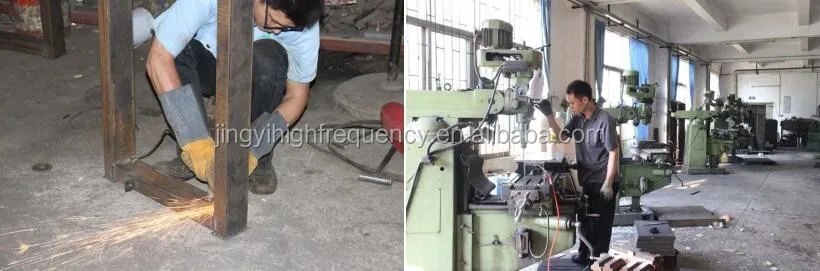

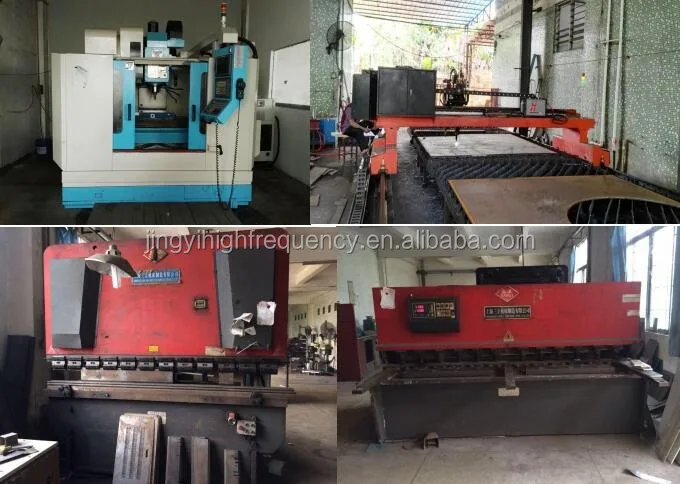

We have one big CNC Machine for making mold,one big flame cutting machine for cutting iron plate,3 sets lathe machine and 10 sets Milling Machine for parts processing.

4. Professional Engineers Department.
We have 10 professional technology R&D engineers,20 passionated and young engineers and 40 workers.

5. Great reputation on high frequency field in worldwide.
Because of the high-quality,punctually delivery time,professional technical support,customer-oriented service and the factory competitive price.

6. One of the Leading Manufacturer in this field.
Annual output machines about 1000 sets and output value USD 5,000,000.

7. Overseas After-sale Service.
Have overseas after-sale office in Vietnam,Indonesia etc.In the futurewe will have more and more overseas office with the development of our company.

8. Profession and puisuit for excellent.
We are focusing on high frequency machines and hot press machines,never make other machines.

9. Professional sales team and self-own Export License.
We have Professional sales team (A bridge between manufacturer and customers)and have self-owned import and export license.
