Oil Pressure High Frequency Welding Machine (JY8000F-2)

FOB Reference Price:Get Latest Price
$5,500.00 - $6,800.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
JY8000F-2
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Jingyi
Condition:
New
Voltage:
AC220/380/400/415/440V 3PHASE
Frequency:
27.12MHZ
Welding Area:
300*500mm
Dimensions:
1700(mm)*1200(mm)*2150(mm)
Usage:
PVC Welding,etc
Warranty:
1 Year, 1 Year
After-sales Service Provided:
Free spare parts, Video technical support, Engineers available to service machinery overseas
Key Selling Points:
Flexible Manufacturing
After Warranty Service:
Video technical support, Spare parts
Local Service Location:
United States, Viet Nam, Philippines, Indonesia
Applicable Industries:
Manufacturing Plant, Retail
Showroom Location:
United States, Viet Nam, Indonesia
Weight (KG):
650 KG
Power (kW):
8
Marketing Type:
Hot Product 2019
Machinery Test Report:
Provided
Video outgoing-inspection:
Not Available
Head:
Double Head
Function:
The crystallization of High-tech Machiery Automation
Operation:
Easy
Color:
Main Blue
Brand name:
JingYi
Product:
Single face and double head HF welding machine
For Installation and Operation:
Provided Freely
Power:
8KW
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Strong Wooden Case
Port
SHENZHEN Port

JingYi Made Single Side Double Stations High Freuqency Welding Machine For Sale

Product Description

Applications and Advantages:

This machine is suitable for welding and embossing for thick leather and large embossing product. These products require longer welding and cooling time; the operator can save time by preparing materials at one station while the other station starts its welding process. This design enable single operator to operate on both stations which will be more efficient than the T type machine (2 operator needed.)



The output power this machine is 5KW, 8kw, 10kw, 12kw. If the application is printed product, you can lower the mould by using the foot paddle then align it manually. It is more efficient than the sliding table type machine with the same output power, also more economical; highly suitable for sport shoes industries.

♦Our Factory:

Parameters

High Frequency Shoes Upper Welding and Embossing Machine (JY5000F-2)

Model              JY5000F-2                      JY8000F-2
H.F. Output                  5KW            8KW
Oscillation Frequency                                        27.12MHZ
Power Supply           AC220/380/400/415/440V 3 PHASE(Customize)
Input Power                8.5KVA           15KVA
Oscillation Tube                7T85RB           7T69RB
Max Pressure(kg)              Air Pressure 600kg/Oil Pressure 2000kg
Max gap of electrodes(mm)                                          80mm
Stroke(mm)                                         60mm
Working table size               300*500mm              300*500mm
Operation mode                                 Pneumatic/Hydraulic
Net weight(kg)               400KG              480KG
Gross weight               450KG              530KG
Package Size                         1700(L)x1200(W)x2150(H)mm



Features:
1. Anti-spark electric system
When the spark occurring, the high sensitiveness spark electric system will cut the high frequency power immediately to protect the mould and material.

2. Jamming Prevention Device
Equipped with high frequency stabilizer and magnetic leakage suppressor, this device can prevent the leakage of electromagnetic radiation to avoid other electrical instruments jamming such as televisions and radios, etc.


3.The Special Mechanical Structure
With a excellent design and structure, the machine can works precisely and intensively.

4.Easy Tuning And Special Protection Circuit
The selectable output power can ensure the stable quality of the product. While the welding process, it could largely reduce the heating time.

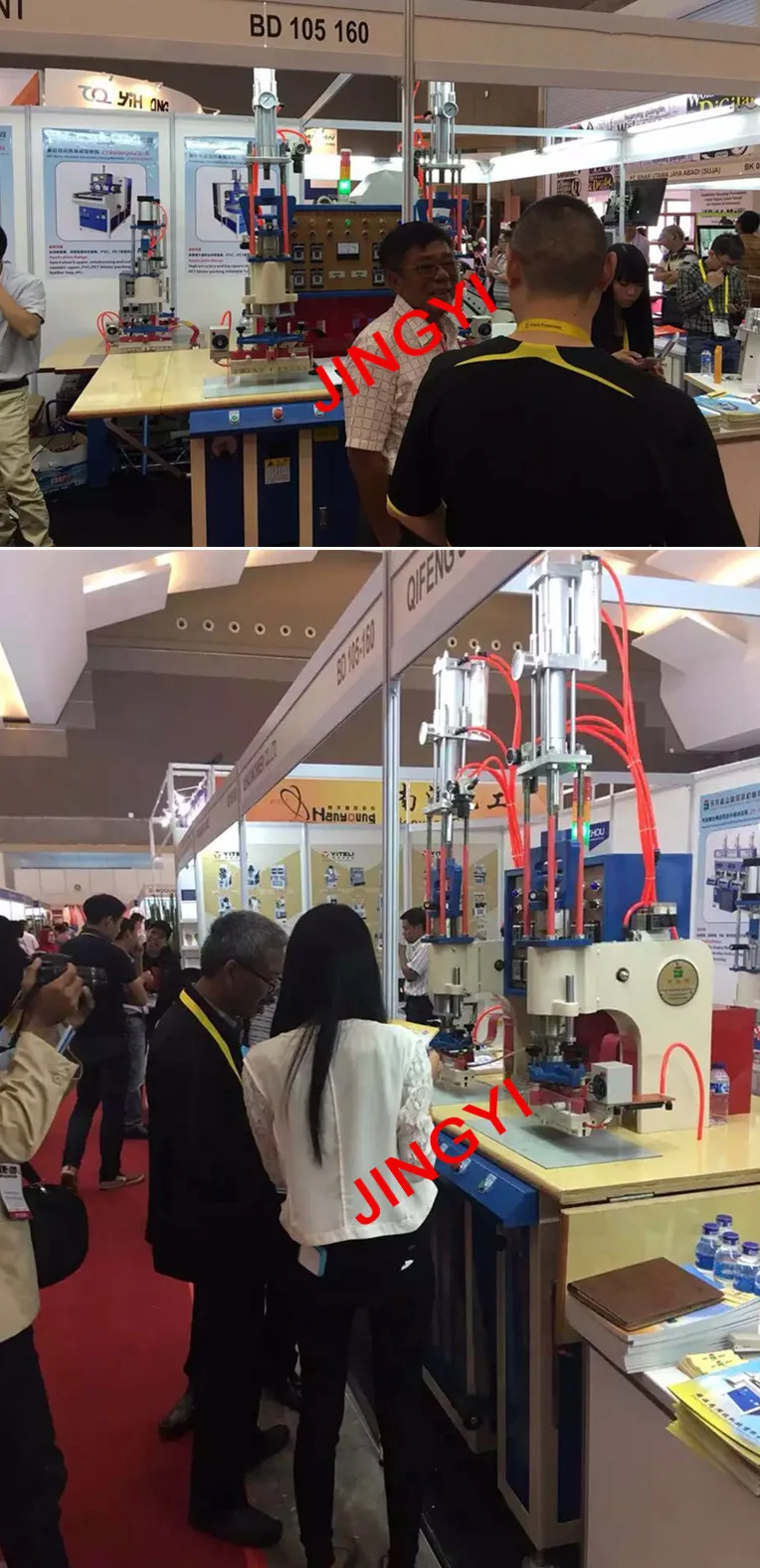

♦Exhibitions:

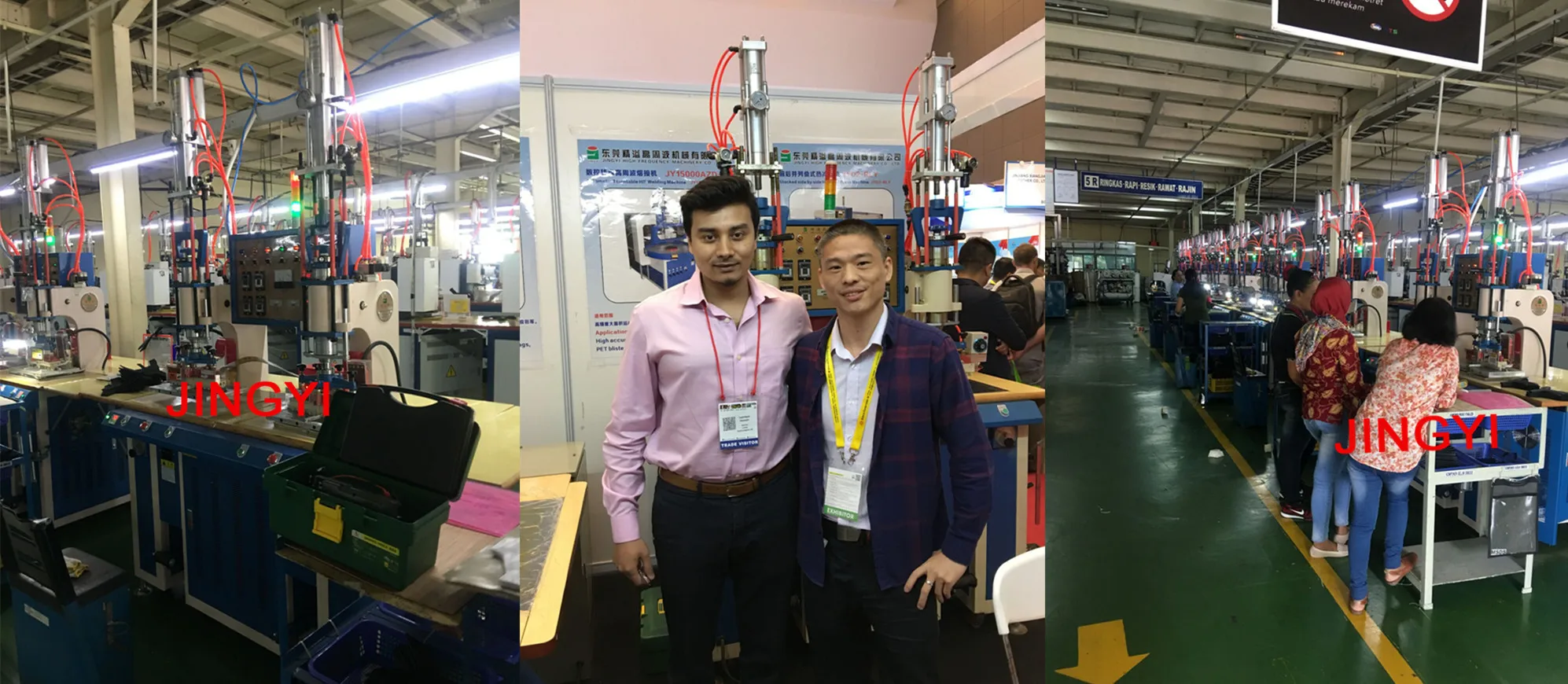

♦My Customers:

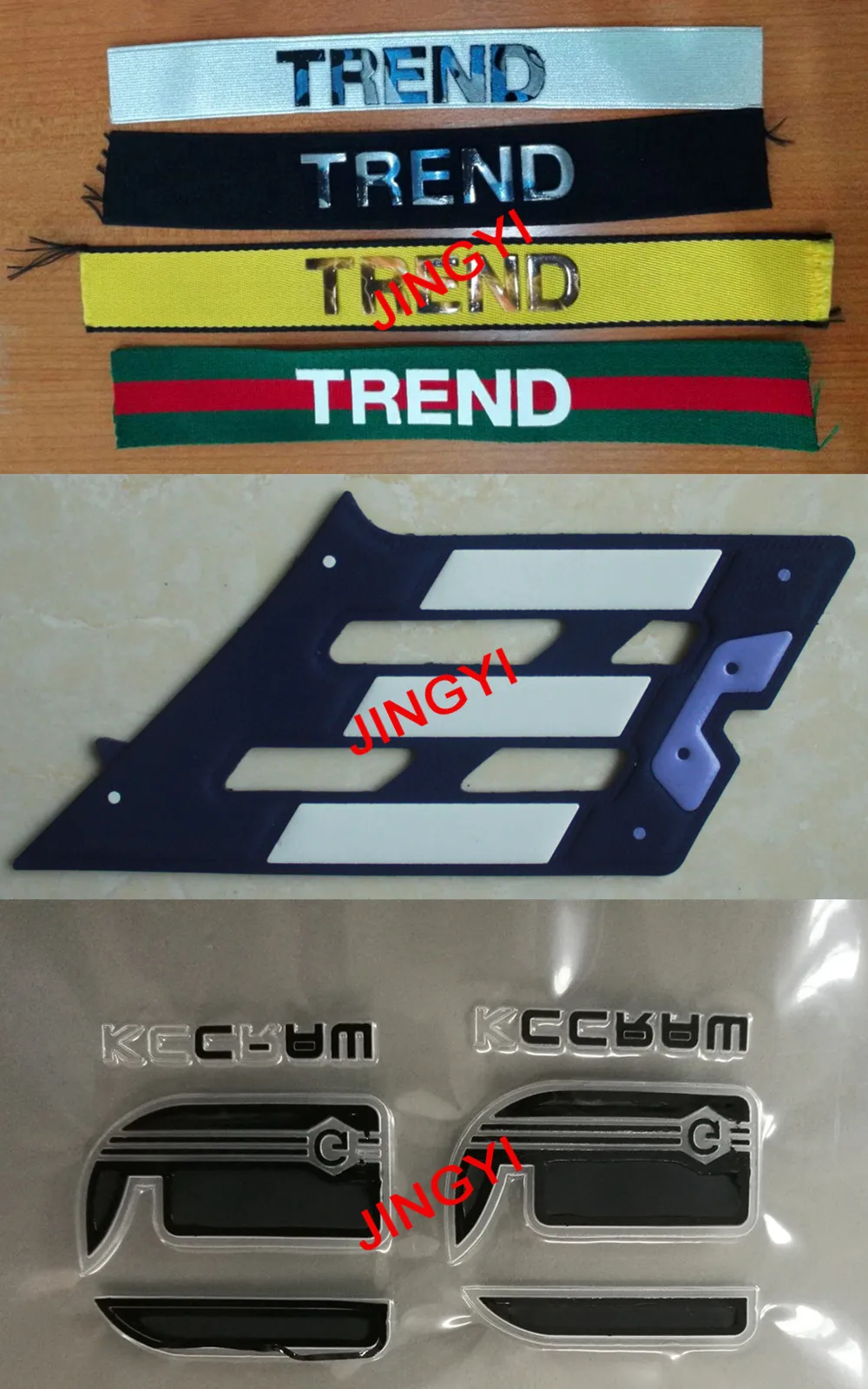

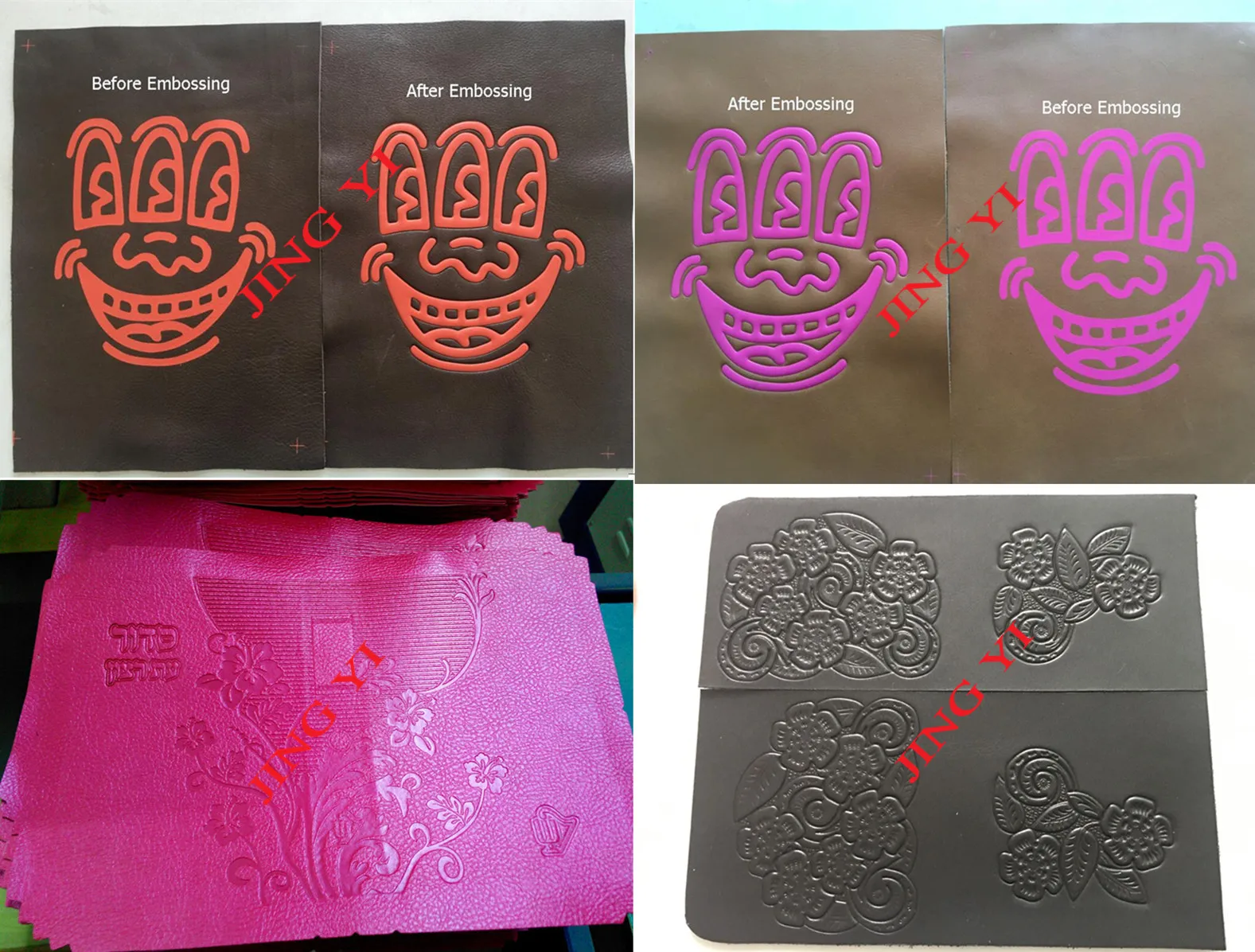

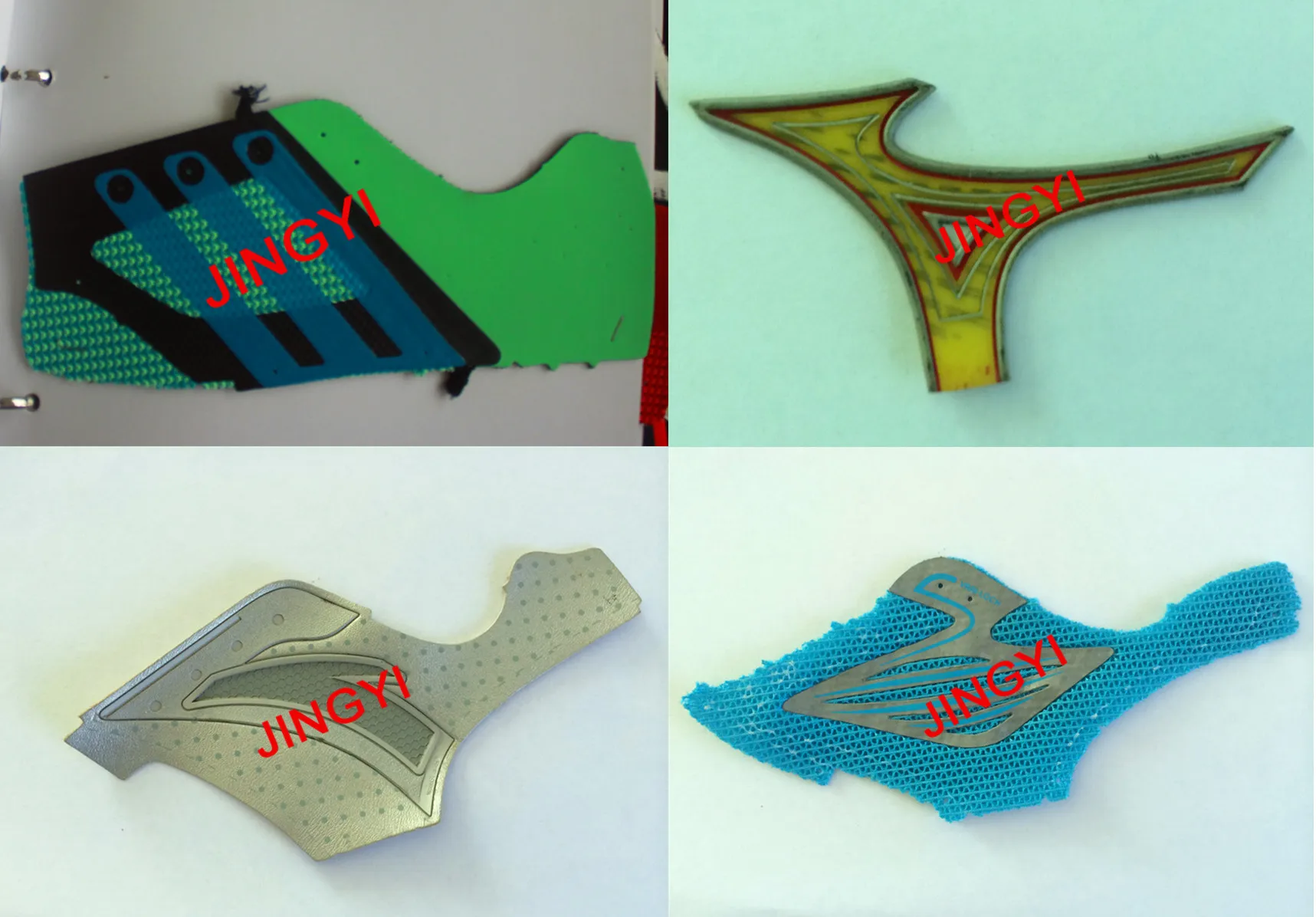

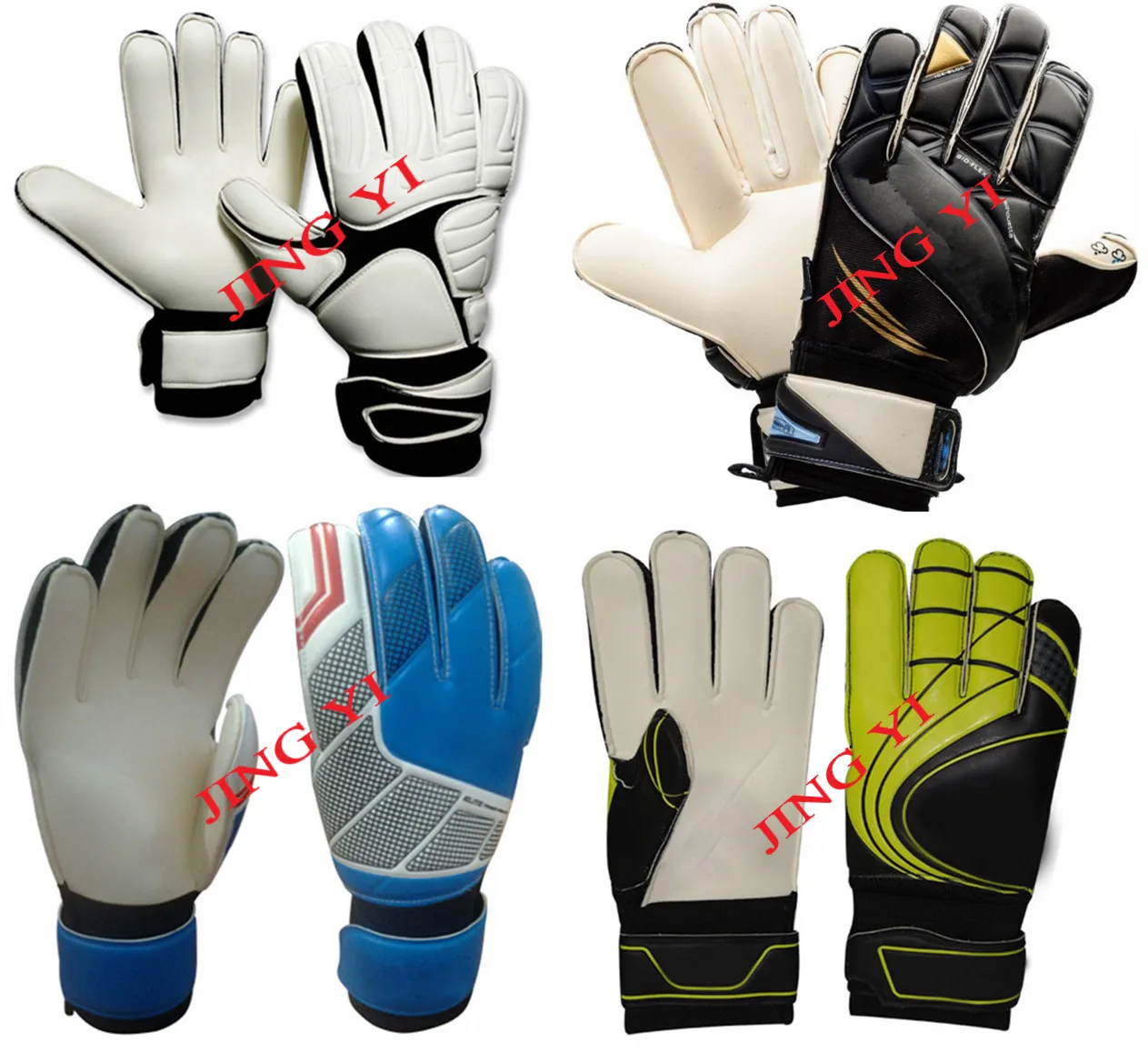

♦Product Samples:
