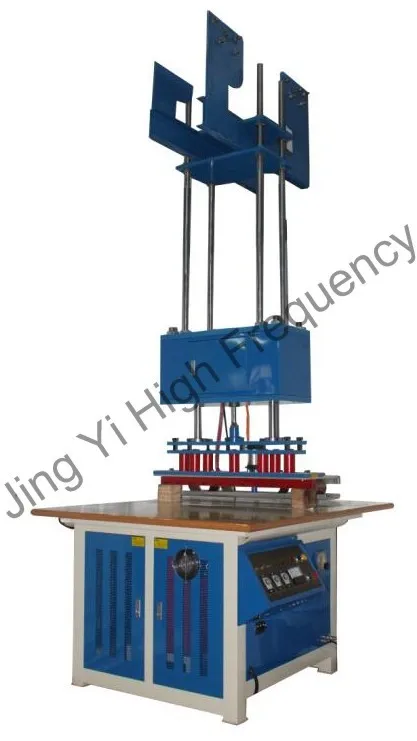

canvas welding machine with standard one

FOB Reference Price:Get Latest Price
$8,600.00 - $25,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
JY-15000FB
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Jing Yi
Condition:
New
Voltage:
AC220/380/400/415/440V 3PHASE
Frequency:
27.12MHZ
Welding Area:
220mm *2200mm
Dimensions:
1600(mm)*1320(mm)*890(mm)
Usage:
Industrial Canvas, Industrial Canvas,PVC Tent,PVC tarpaulin,PVC stretch ceiling
Warranty:
1 Year, 1 Year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support, Engineers available to service machinery overseas, No after-sales service
Applicable Industries:
Manufacturing Plant
Product name:
PVC Canvas,Tarpaulin,Tent Welding Machine
Style:
Hanging-style
Table:
Big Table
Color:
Main Blue
Certificate:
ISO9001:2004,SGS,CE
Brand nane:
JingYi
For Installation and Operation:
Provided Freely
Power:
15KW
Weight:
1500Kg
Supply Ability
Supply Ability:
50 Set/Sets per Month High Frequency
Packaging & Delivery
Packaging Details
Strong Plywooden Case,international standard
Port
SHENZHEN Port.Guangzhou Port
Product Description

Features:


1. Hanging style
The hanging style machine can process infinite long material

2. Anti-spark electric system
When the spark occurring, the high sensitiveness spark electric system will cut the high frequency power immediately to protect the mould and material.

3. Easy tuning and special protection circuit
The selectable output power can ensure the stable quality of the product. While the welding process, it could largely reduce the heating time.

4. No High Radiation
This machine has a good shielding device, all the parameters has passed the inspection of the State Department.

Specification
Model
JY8000FB
JY1500FB
Machine Working Principle
HF Output
8KW
15KW
HF Welding relies on certain properties of the material being welded to cause the generation of heat in a rapidly alternating electric field, so called dielectric heating of the material to be welded.

This means that only certain materials can be welded using this technique. The dynamic electric field causes the molecules in polar thermoplastics to oscillate.

Depending on their geometry and dipole moment, these molecules may translate some of this oscillatory motion into thermal energy and cause heating of the material. A measure of this interaction is the loss factor, which is temperature and frequency dependent.
Oscillation Frequency
                             27.12MHZ
Power Supply
AC220/380/400/415/440V 3PHASE
Inout Power
15KVA
25KVA
Oscillation Tube
7T69RB
8T85RB
Max Pressure
800KG
14001KG
Electrode Size
220*1100MM
220*2200MM
Max Gap of Electrodes
                                 200MM
Net weight
1000KG
1500KG
Packing Size
                   1600*1320*890MM
                     Main Spare Parts
Solenoid valve
Taiwan Air TAC
Timer
Taiwan CKC
Temperature Controller
Korea Rainbow
Contactor
Japan Fuji
Relay
Japan OMRON
Oscillation Tube
TOSHIBA
Anti-Spark Systerm
NL-5557
Application

Industrial Canvas,PVC Tent,PVC tarpaulin,PVC stretch ceiling,Raincoat,Inflatable toys,Waterbed,Large-scale advertising banner,Awning and canopy,Truck cover,Sunshading canvas,Painting canvas,film curtain and relatives for automatic stepping welding and solding

Packing & Delivery

Packing:

We use ply-wood case for packing machines, it will meet export standard like safty, protection requirment and durable performace in long time shipping by sea or air, our package no need fumigation

Delivery:

For machine is big and heavy parcel, and different country with different delivery cost. And the best delivery we suggest is by sea, so the delivery cost will be depended on your destination port. The price show on the website just the machine EXW price, please understand.

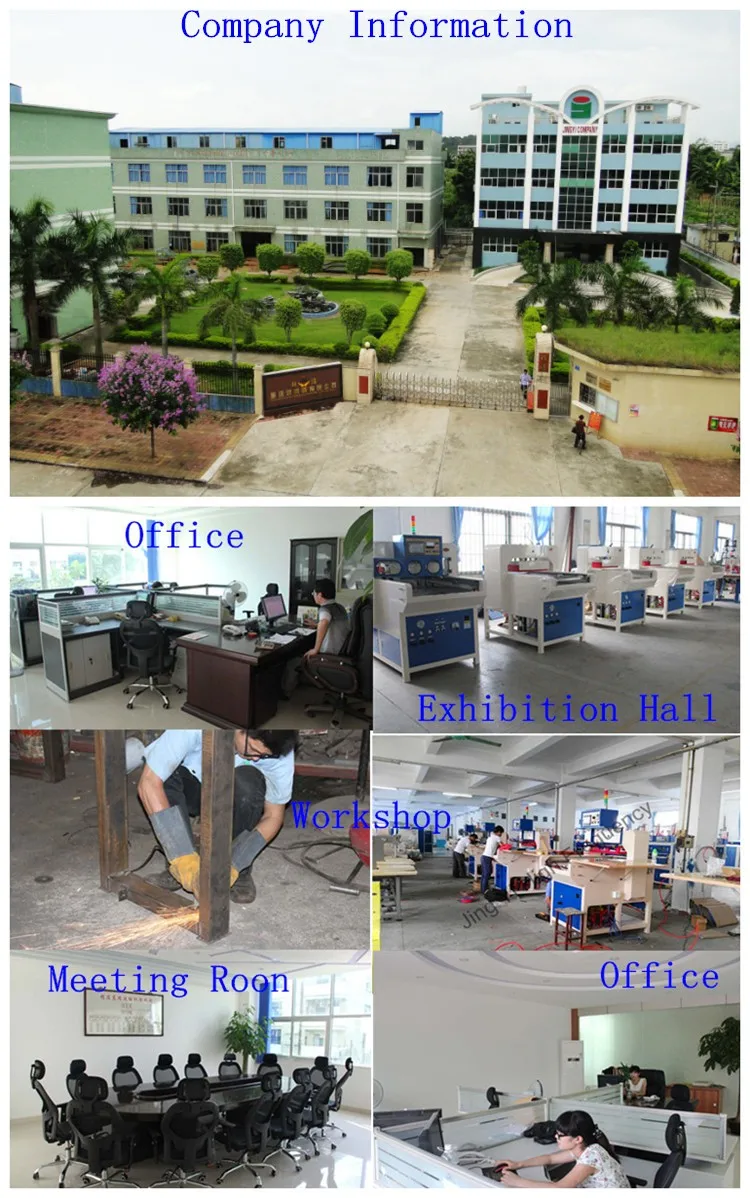

Our Company

Jing Yi Machinery already has two overseas offices in Vietnam and Indonesia

Jing Yi High Frequency Welding Machines Factory has been focusing on the production of high-frequency welding machines since 1991. We are always keep upgrading our products to meet the need of the market with outputs 1,000 units annually. Moreover, we have gotten the system certification of ISO 9001,CE,SGS Approved in Feb. 2004 and obtained two national patents in August 2009.

Jing Yi boasts strong technical force, advanced production and testing facilities, perfect management. There are ten professional qualification certificate engineers in our company. We have the up-to-date products catering to the international market, which make our company in the leading post.

We are emphasized on setting up a perfect after-sale service system in the farther development.

“To be perfect, customer first, scientific management, keeping improving for excellence”,this is our long-term developing policy. The complaint-free is the main goal that we will always strive for.

Exhibition
FAQ

Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.

Pre-sale services:


1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.

Sale of services:


1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.

2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.

After-sales service:


1. Where to buy our products for 1 years warranty and life long maintenance.


2. 24-hours telephone service.


3. A large stock of components and parts, easily-worn parts.
